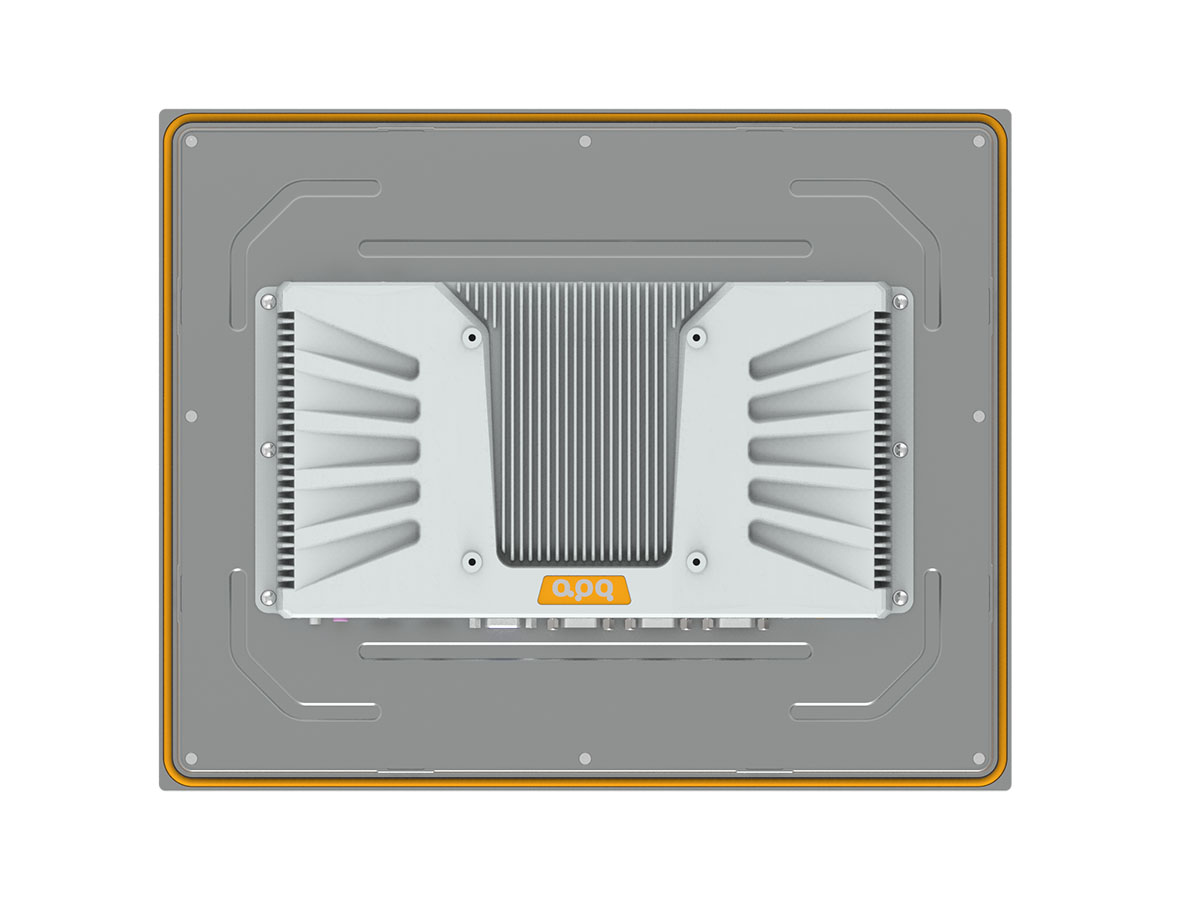

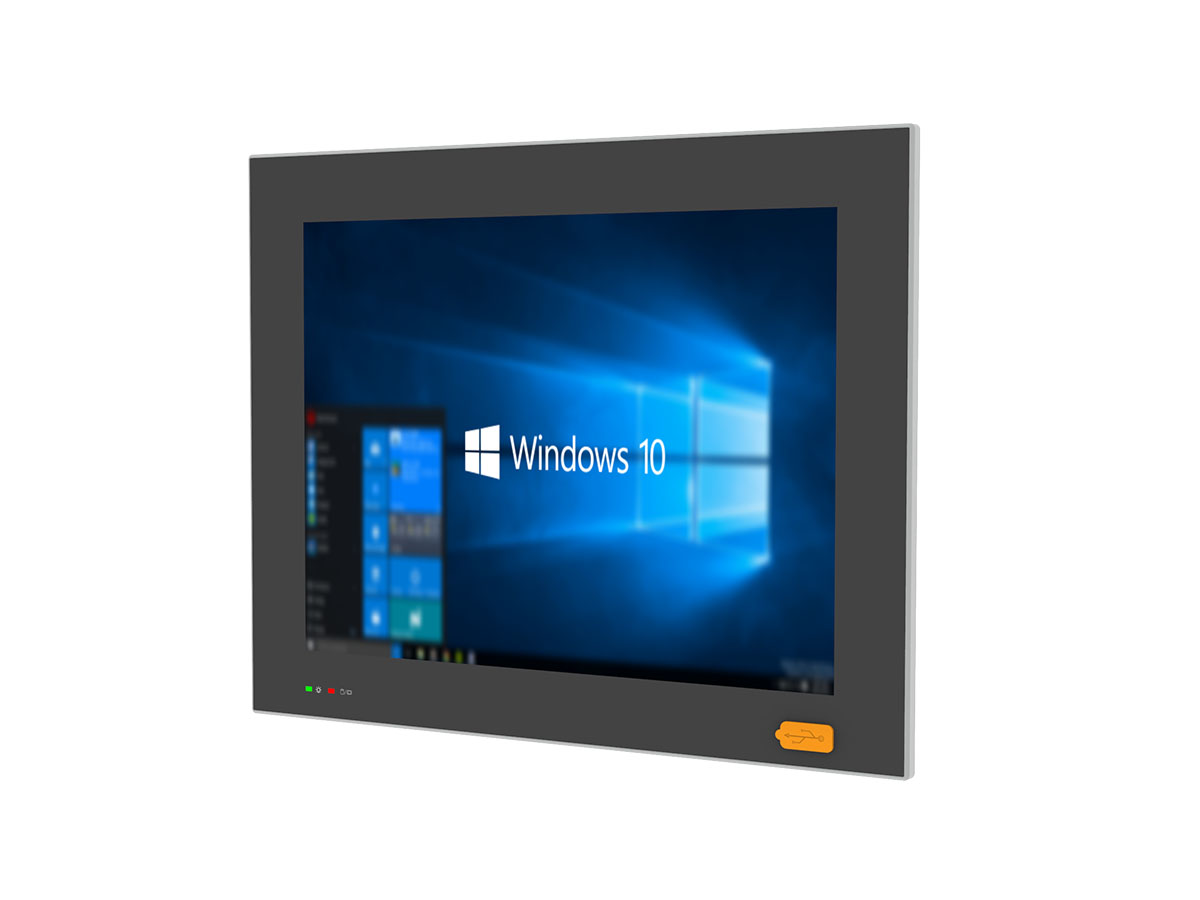

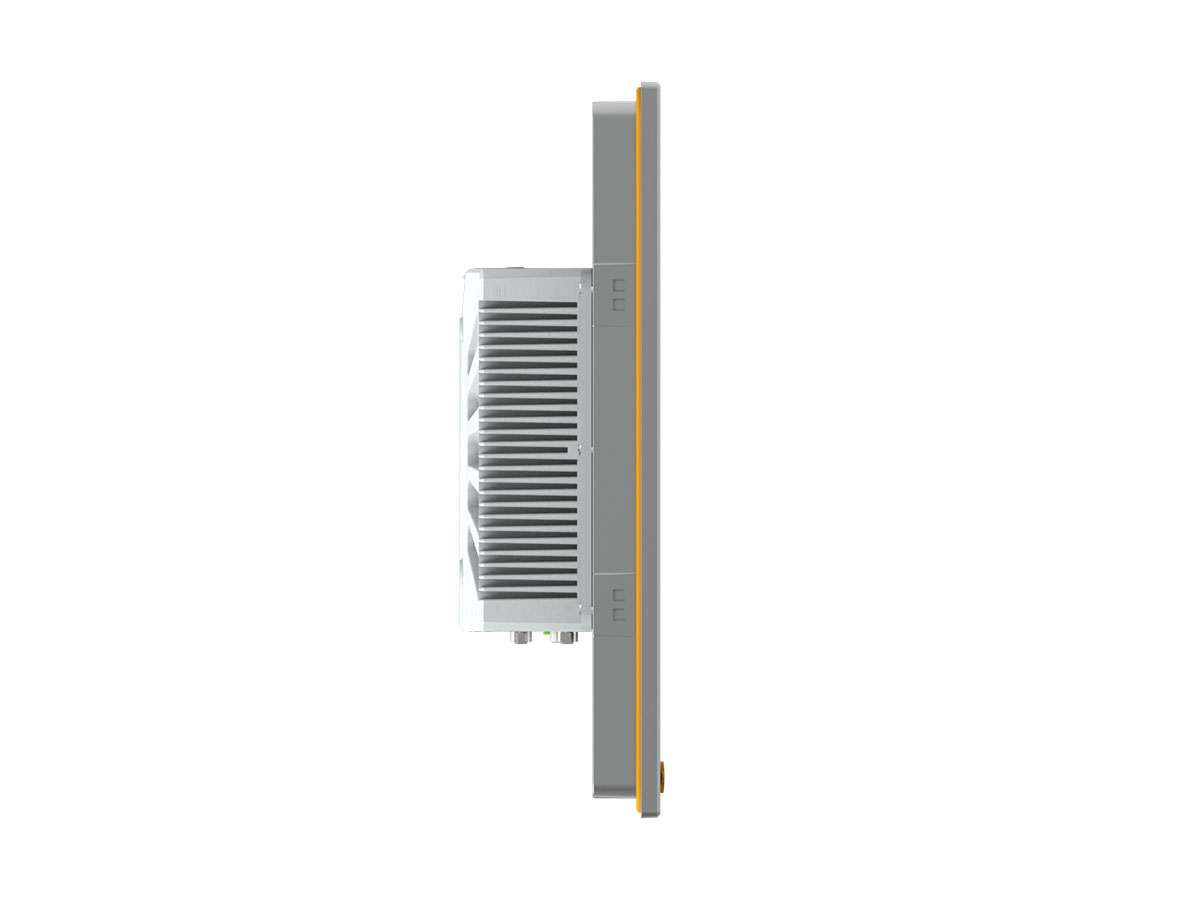

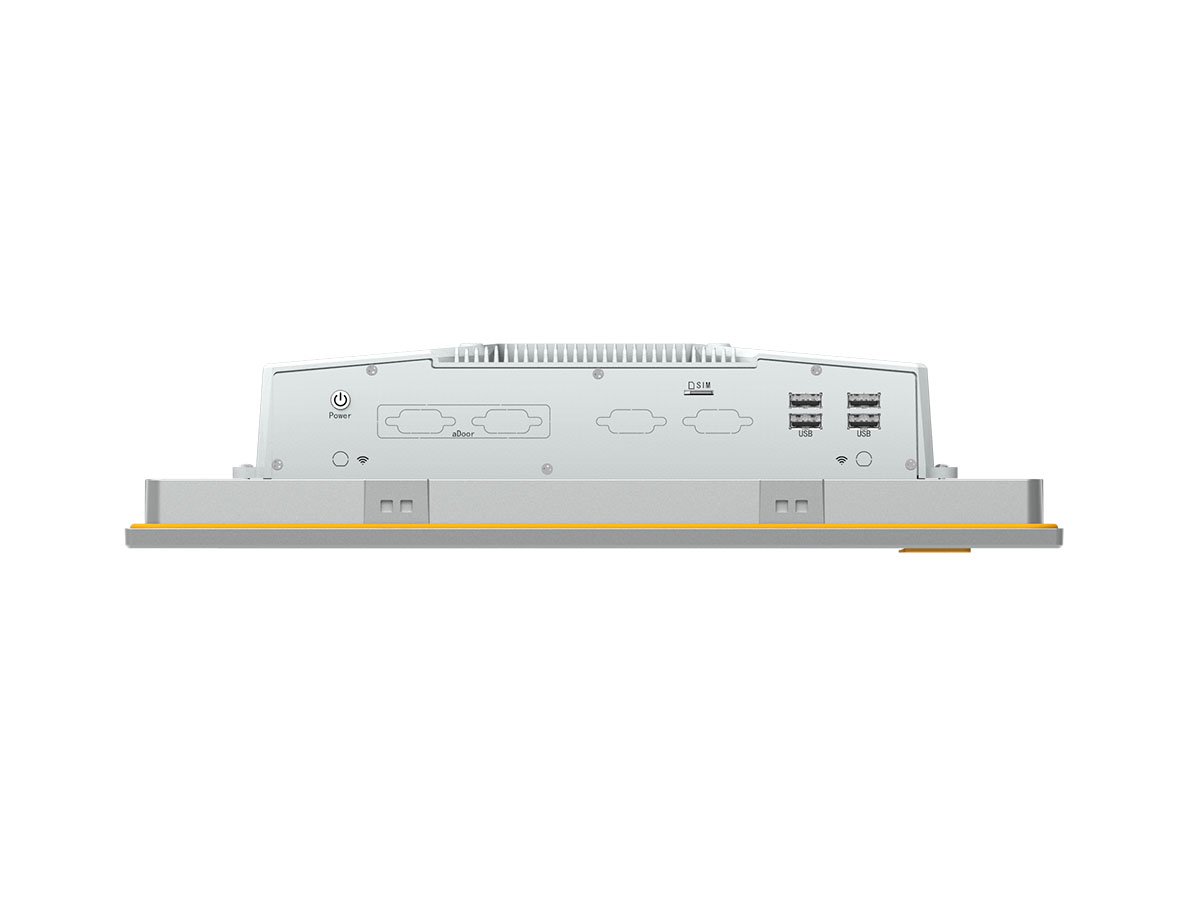

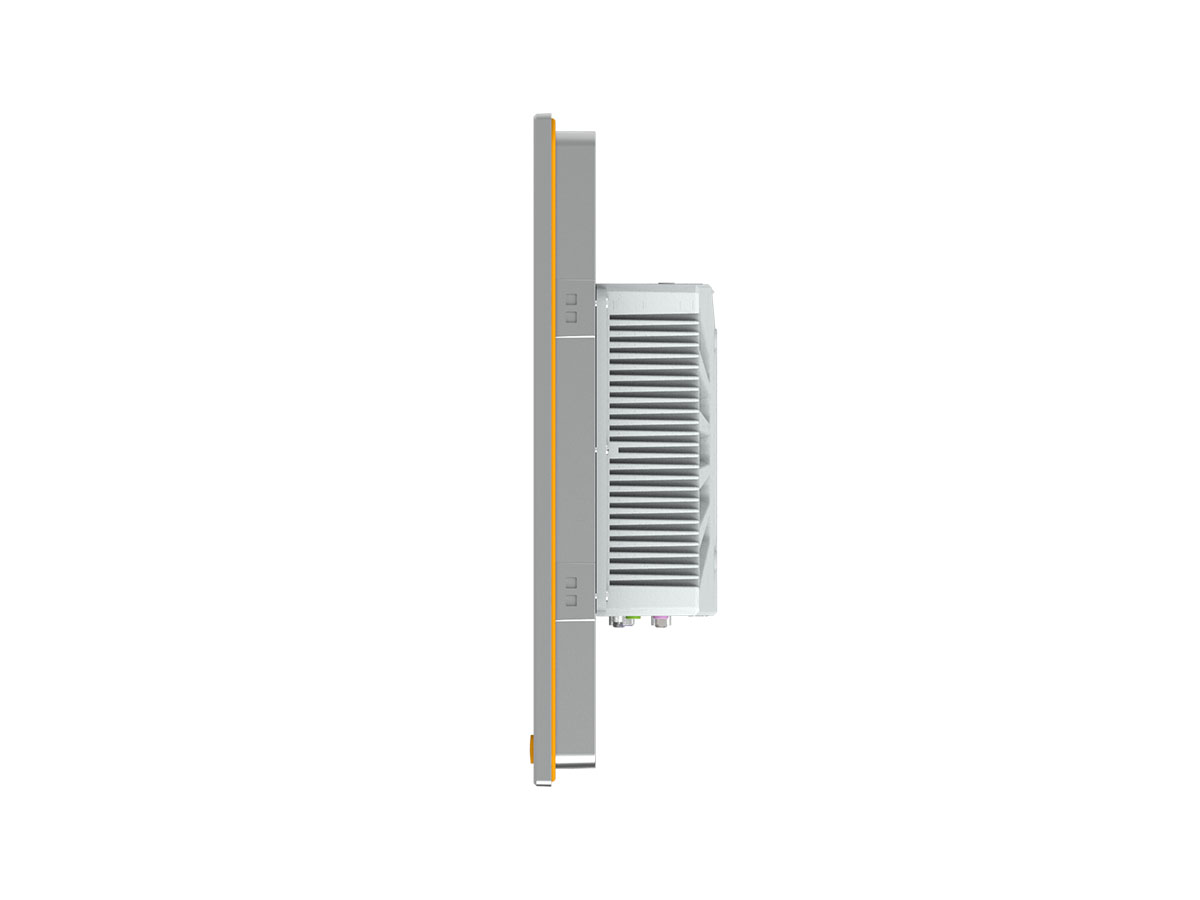

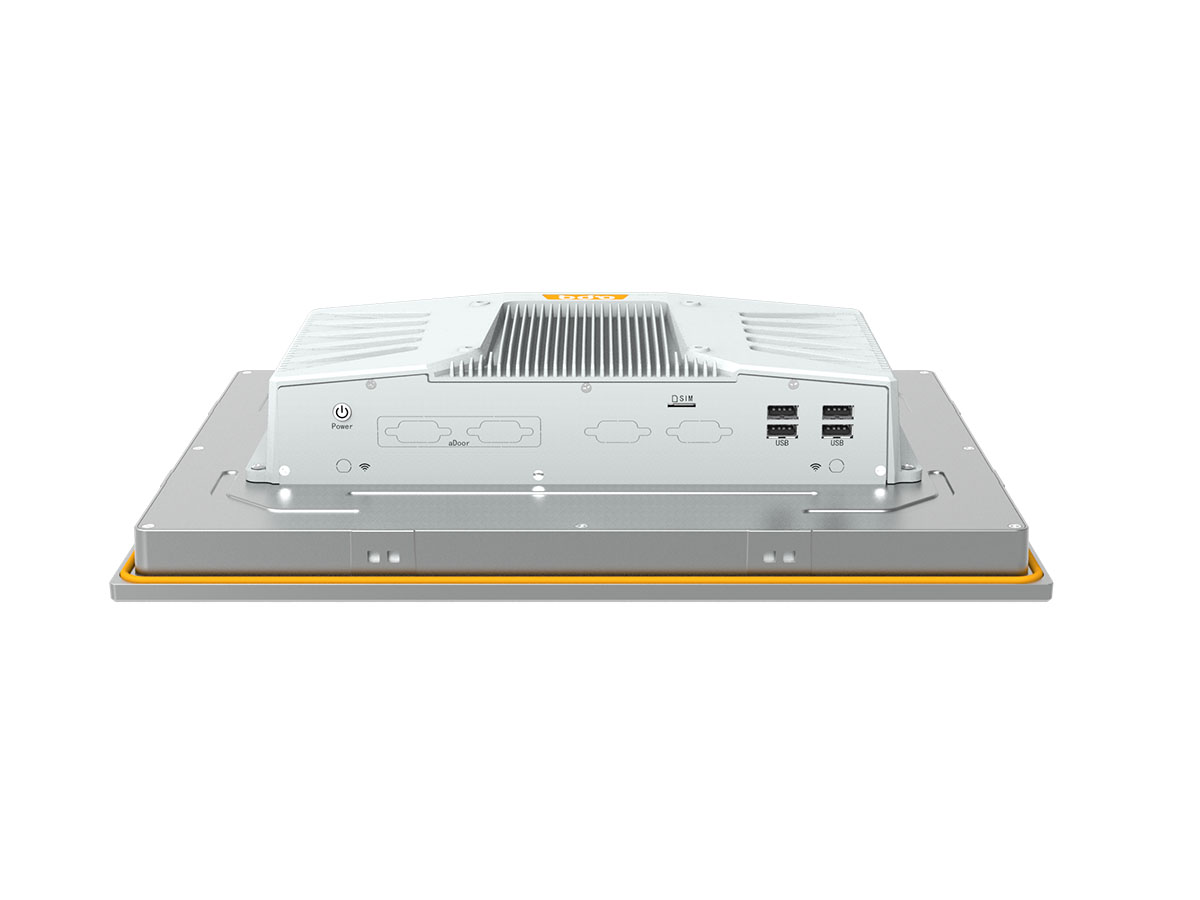

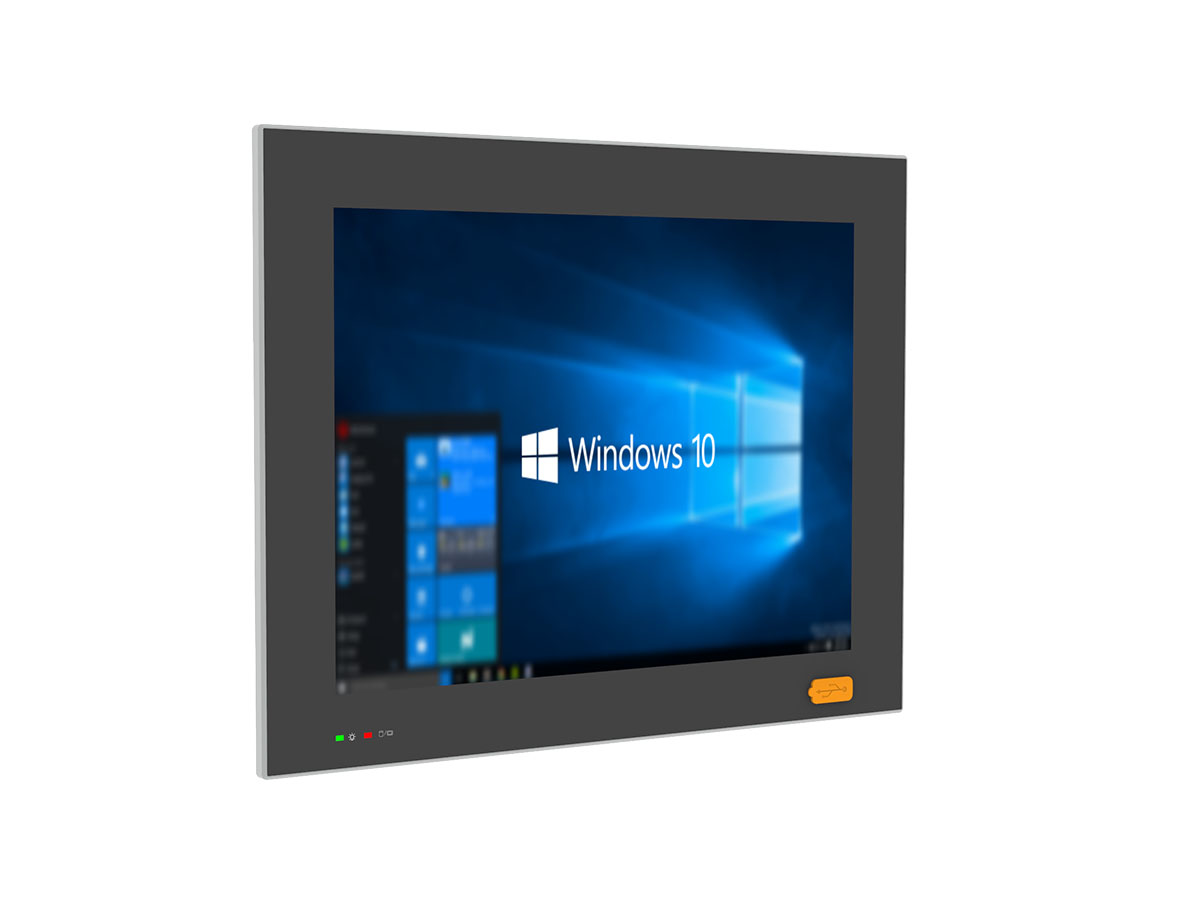

Note: The product image shown above is the PL150CQ-E5M model

PLE5M系列工業一體機/工業平板電腦電阻觸摸屏

特點:

全屏電阻觸摸屏設計
模塊化設計12.1~21.5″可選,支持方屏/寬屏
前面板滿足IP65要求
前面板集成USB Type-A和信號指示燈
采用Intel? Celeron? J1900超低功耗CPU
板載6個COM,支持兩路隔離RS485
集成雙Intel?千兆網卡
雙硬盤存儲支持
支持APQ MXM COM/GPIO模塊擴展
支持WiFi/4G無線擴展
嵌入式/VESA安裝
12~28V直流供電

遠程管理
狀態監控
遠程運維
安全控制

聯系我們

掃碼即可添加微信，售前客服為您提供咨詢服務

產品描述

阿普奇全屏電阻觸摸屏工業一體機PLxxxRQ-E5M系列是一款專為工業應用而設計的強大一體機。它采用全屏電阻觸摸屏技術，滿足各種工業環境下的操作需求。采用模塊化設計，支持12.1~21.5″的屏幕尺寸，適應不同行業標準和用戶需求。前面板滿足IP65要求，具備出色的防塵防水性能，能夠應對各種惡劣的工業環境。Intel? Celeron? J1900超低功耗CPU，保證高效性能的同時降低能耗。它還集成了雙Intel?千兆網卡，提供高速穩定的網絡連接和數據傳輸能力。此外，該一體機支持雙硬盤存儲，為用戶提供更大的存儲容量。此款工業一體機還具備豐富的擴展功能，支持APQ MXM COM/GPIO模塊擴展，可根據具體應用需求進行定制配置。支持WiFi/4G無線擴展，方便遠程管理和數據傳輸。采用嵌入式和VESA安裝方式，方便集成到各種工業環境中，采用12~28V直流供電，適應廣泛的電源環境。

總之，阿普奇全屏電阻觸摸屏工業一體機PLxxxRQ-E5M系列具有出色的性能和多樣化的功能，是工業自動化和邊緣計算領域的理想選擇。

產品介紹

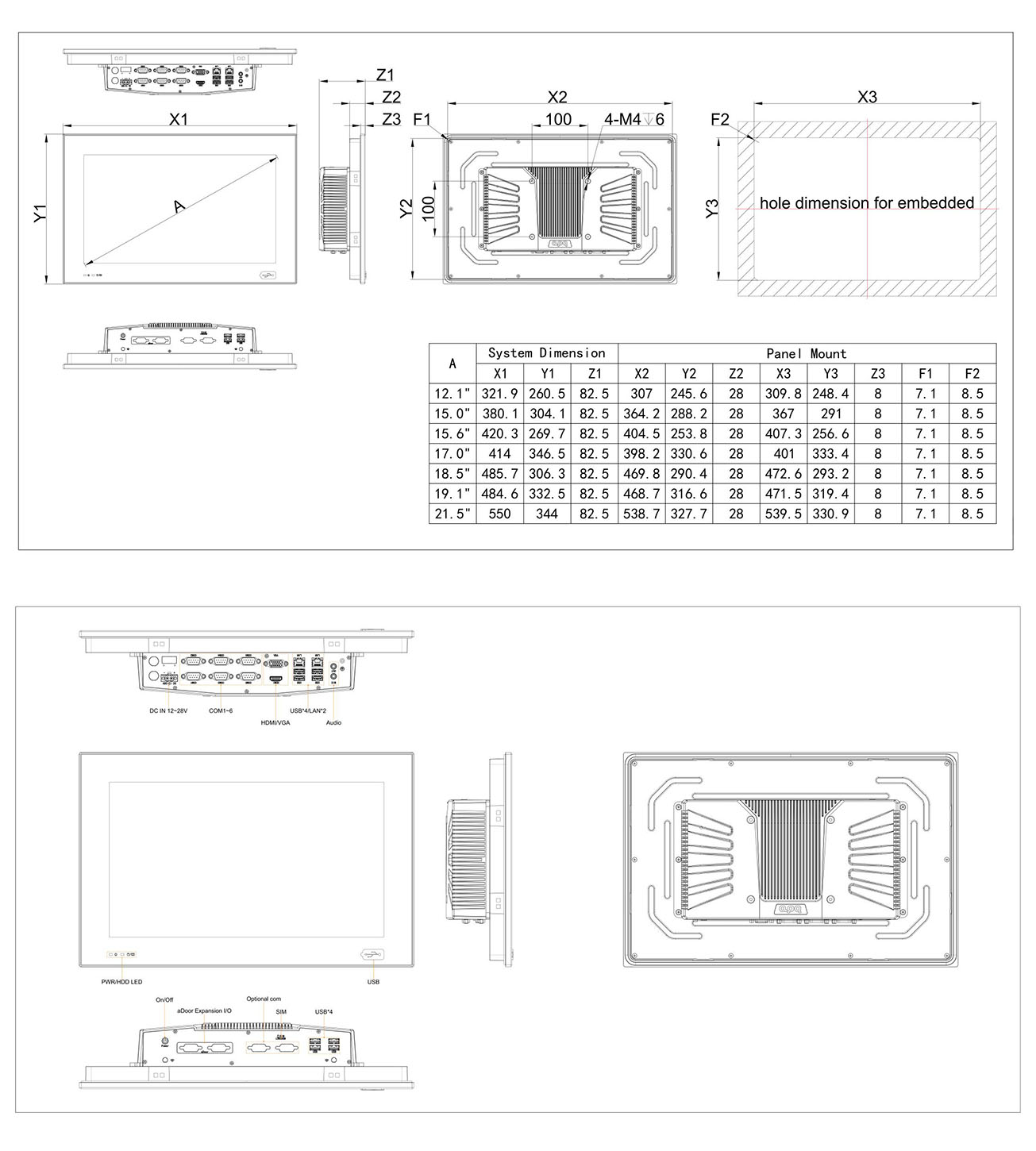

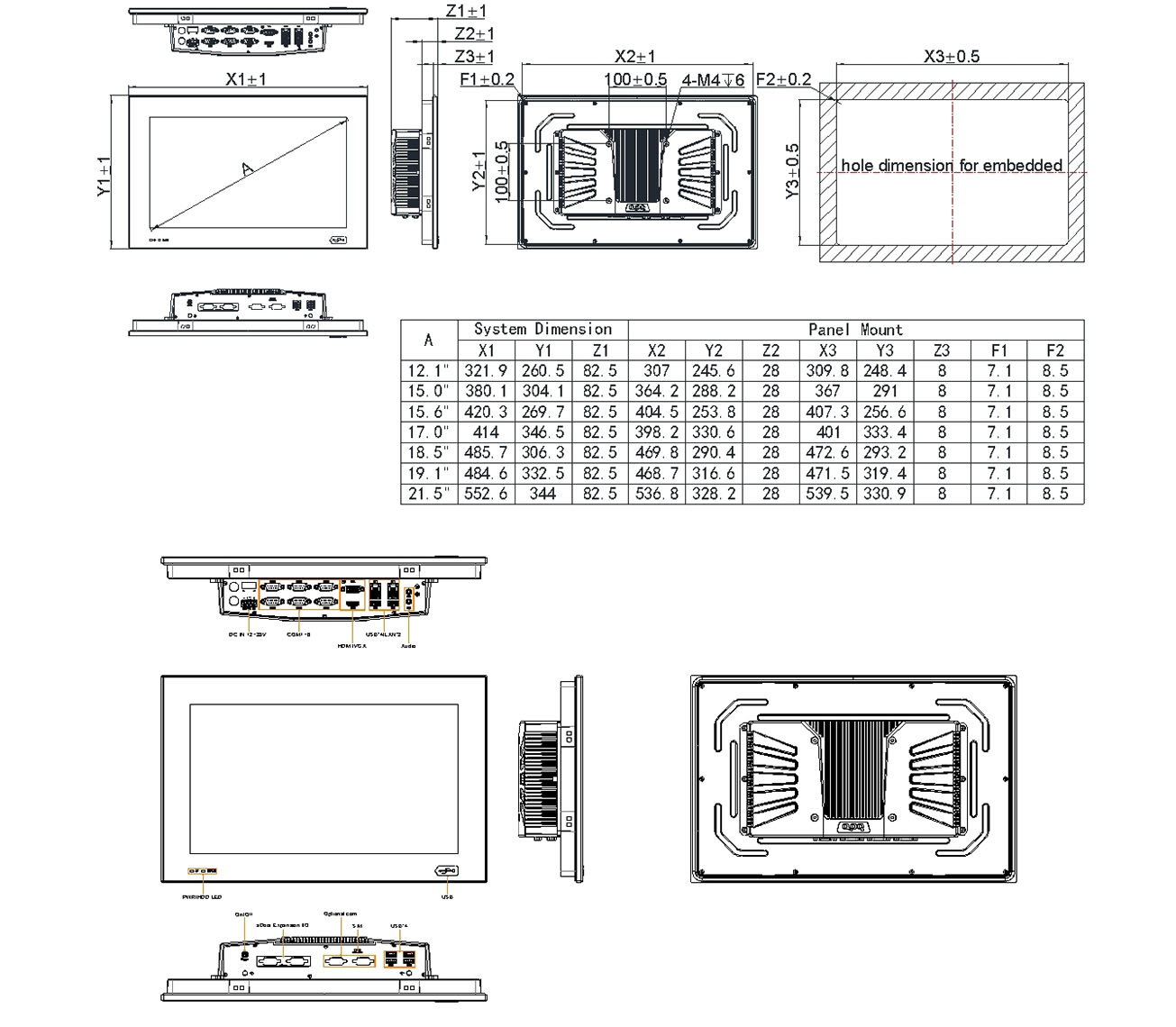

工程圖紙

下載產品資料

掃碼添加微信，獲取最新產品資料文件

Model		PL121RQ-E5M	PL150RQ-E5M	PL156RQ-E5M	PL170RQ-E5M	PL185RQ-E5M	PL191RQ-E5M	PL215RQ-E5M
LCD	Display Size	12.1"	15.0"	15.6"	17.0"	18.5"	19.0"	21.5"
	Display Type	XGA TFT-LCD	XGA TFT-LCD	FHD TFT-LCD	SXGA TFT-LCD	WXGA TFT-LCD	WXGA TFT-LCD	FHD TFT-LCD
	Max.Resolution	1024 x 768	1024 x 768	1920 x 1080	1280 x 1024	1366 x 768	1440 x 900	1920 x 1080
	Luminance	350 cd/m2	300 cd/m2	350 cd/m2	250 cd/m2	250 cd/m2	250 cd/m2	250 cd/m2
	Aspect Ratio	4:3	4:3	16:9	5:4	16:9	16:10	16:9
	Viewing Angle	80/80/80/80°	88/88/88/88°	89/89/89/89°	85/85/80/80°	89/89/89/89°	85/85/80/80°	89/89/89/89°
	Max. Color	16.7M	16.7M	16.7M	16.7M	16.7M	16.7M	16.7M
	Backlight Lifetime	30,000 hr	70,000 hr	50,000 hr	30,000 hr	30,000 hr	30,000 hr	50,000 hr
	Contrast Ratio	800:1	2000:1	800:1	1000:1	1000:1	1000:1	1000:1
Touchscreen	Touch Type	5-Wire Resistive Touch
	Controller	USB signal
	Input	Finger/Touch pen
	Light Transmission	≥78%
	Hardness	≥3H
	Click lifetime	100gf, 10 million times
	Stroke lifetime	100gf, 1 million times
	Response time	≤15ms
?Processor System	CPU	Intel^??Celeron^??J1900
	Base Frequency	2.00 GHz
	Max Turbo Frequency	2.42 GHz
	Cache	2MB
	Total Cores/Threads	4/4
	TDP	10W
	Chipset	SOC
	BIOS	AMI UEFI BIOS
Memory	Socket	1 * DDR3L-1333MHz SO-DIMM Slot
Memory	Max Capacity	8GB
Graphics	Controller	Intel^??HD Graphics
Ethernet	Controller	2 * Intel^??i210-AT (10/100/1000 Mbps, RJ45)
Storage	SATA	1 * SATA2.0 Connector (2.5-inch hard disk with 15+7pin)
Storage	M.2	1 * M.2 Key-M Slot (support SATA SSD, 2280)
Expansion Slots	MXM/aDoor	1 * MXM slot (LPC+GPIO, support COM/GPIO MXM card)
Expansion Slots	Mini PCIe	1 * Mini PCIe Slot (PCIe2.0+USB2.0)

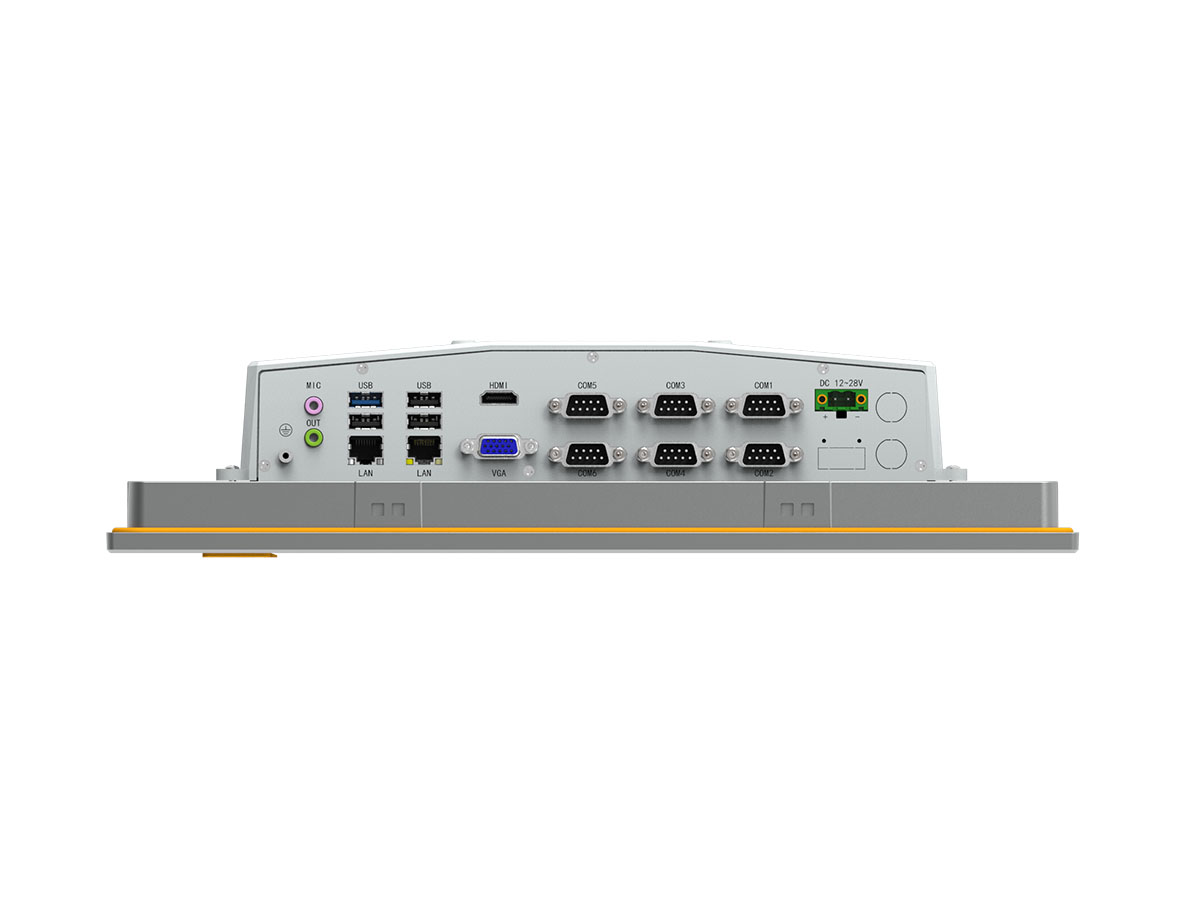

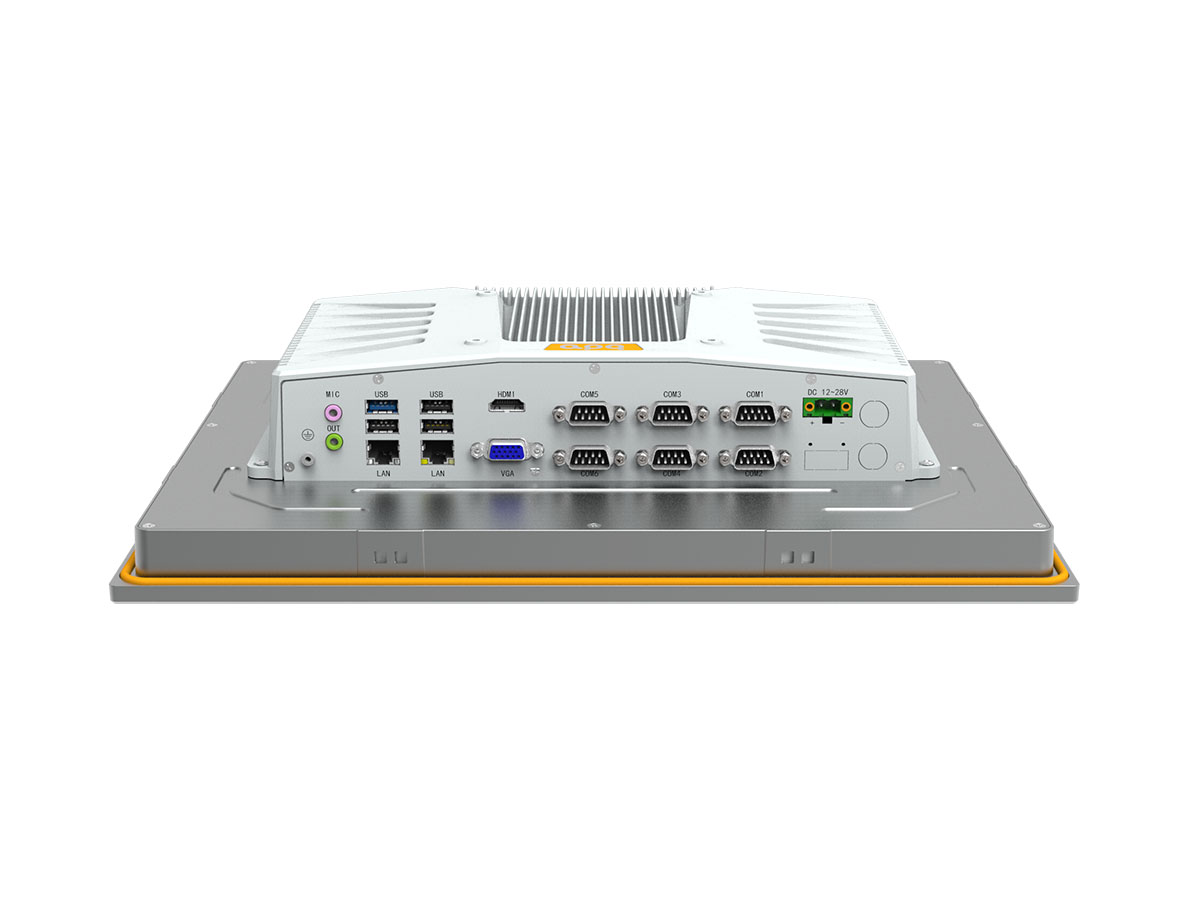

Front I/O	USB	1 * USB3.0 (Type-A) 3 * USB2.0 (Type-A)
	Ethernet	2 * RJ45
	Display	1 * VGA: max resolution up to 19201280@60Hz 1 HDMI: max resolution up to 1920*1280@60Hz
	Audio	1 * 3.5mm Line-out Jack 1 * 3.5mm MIC Jack
	Serial	2 * RS232/485 (COM1/2, DB9/M) 4 * RS232 (COM3/4/5/6, DB9/M)
	Power	1 * 2Pin Power Input Connector (12~28V, P= 5.08mm)
Rear I/O	USB	4 * USB2.0 (Type-A)
	SIM	1 * Nano SIM Card slot (Mini PCIe module provides functional support)
	Button	1 * Power Button with LED
Internal I/O	Front Panel	1 * TFront Panel (3USB2.0+Front Panel, 10x2Pin, PHD2.0) 1 Front Panel (3x2Pin, PHD2.0)
	FAN	1 * SYS FAN (4x1Pin, MX1.25)
	LPC	1 * LPC (8x2Pin, PHD2.0)
	PS/2	1 * PS/2 (PS/2 keyboard + mouse, 6x1Pin, PH2.0)
	USB	2 * USB2.0 (5x2Pin, PH2.0)
	Power	1 * DCIN (power input, 4x1Pin, XH2.54)
	Display	1 * LVDS/eDP (Default LVDS, 20x2Pin, PHD2.0)
	GPIO	1 * 16bits DIO (8xDI and 8xDO, 10x2Pin, PHD2.0)
	Audio	1 * Front Audio (header, Line-Out + MIC, 5x2Pin 2.54mm) 1 * Speaker (2-W (per channel)/8-Ω Loads, 4x1Pin, PH2.0)
Power Supply	Type	DC
	Power Input Voltage	12~28VDC
	Connector	1 * 2Pin Power Input Connector (12~28V, P= 5.08mm)
	RTC Battery	CR2032 Coin Cell
OS Support	Windows	Windows 7/8.1/10
OS Support	Linux	Linux
Watchdog	Output	System Reset
Watchdog	Interval	Programmable 1 ~ 255 sec
Mechanical	Enclosure Material	Radiator/Panel: Aluminum, Box/Cover: SGCC
	Mounting	VESA, embedded
	Dimensions (LWH, Unit: mm)	321.9* 260.5*82.5	380.1* 304.1*82.5	420.3* 269.7*82.5	414* 346.5*82.5	485.7* 306.3*82.5	484.6* 332.5*82.5	550* 344*82.5
	Weight	Net: 3.9Kg, Total: 6.2Kg	Net: 5.3Kg, Total: 7.7Kg	Net: 5.2Kg, Total: 7.6Kg	Net: 6Kg, Total: 8.5Kg	Net: 5.9Kg, Total: 8.5Kg	Net: 6.6Kg, Total: 9.3Kg	Net: 6.8Kg, Total: 9.6Kg
Environment	Heat Dissipation System	Passive heat dissipation
	Operating Temperature	-20~60℃	-20~60℃	-20~60℃	0~50℃	0~50℃	0~50℃	0~60℃
	Storage Temperature	-30~80℃	-30~70℃	-30~70℃	-20~60℃	-20~60℃	-20~60℃	-20~60℃
	Relative Humidity	10 to 95% RH (non-condensing)
	Vibration During Operation	With SSD: IEC 60068-2-64 (1Grms@5~500Hz, random, 1hr/axis)
	Shock During Operation	With SSD: IEC 60068-2-27 (15G, half sine, 11ms)
